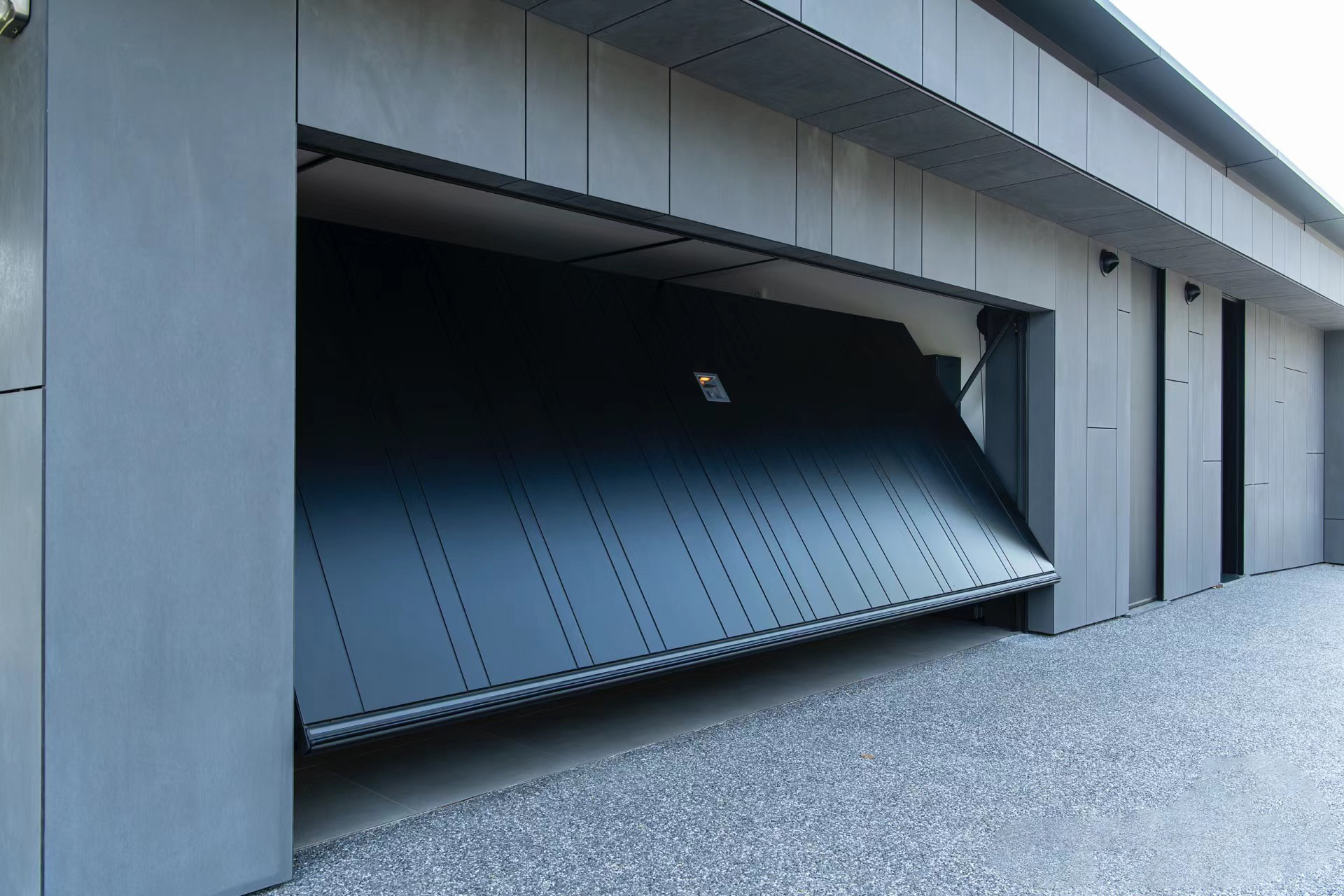

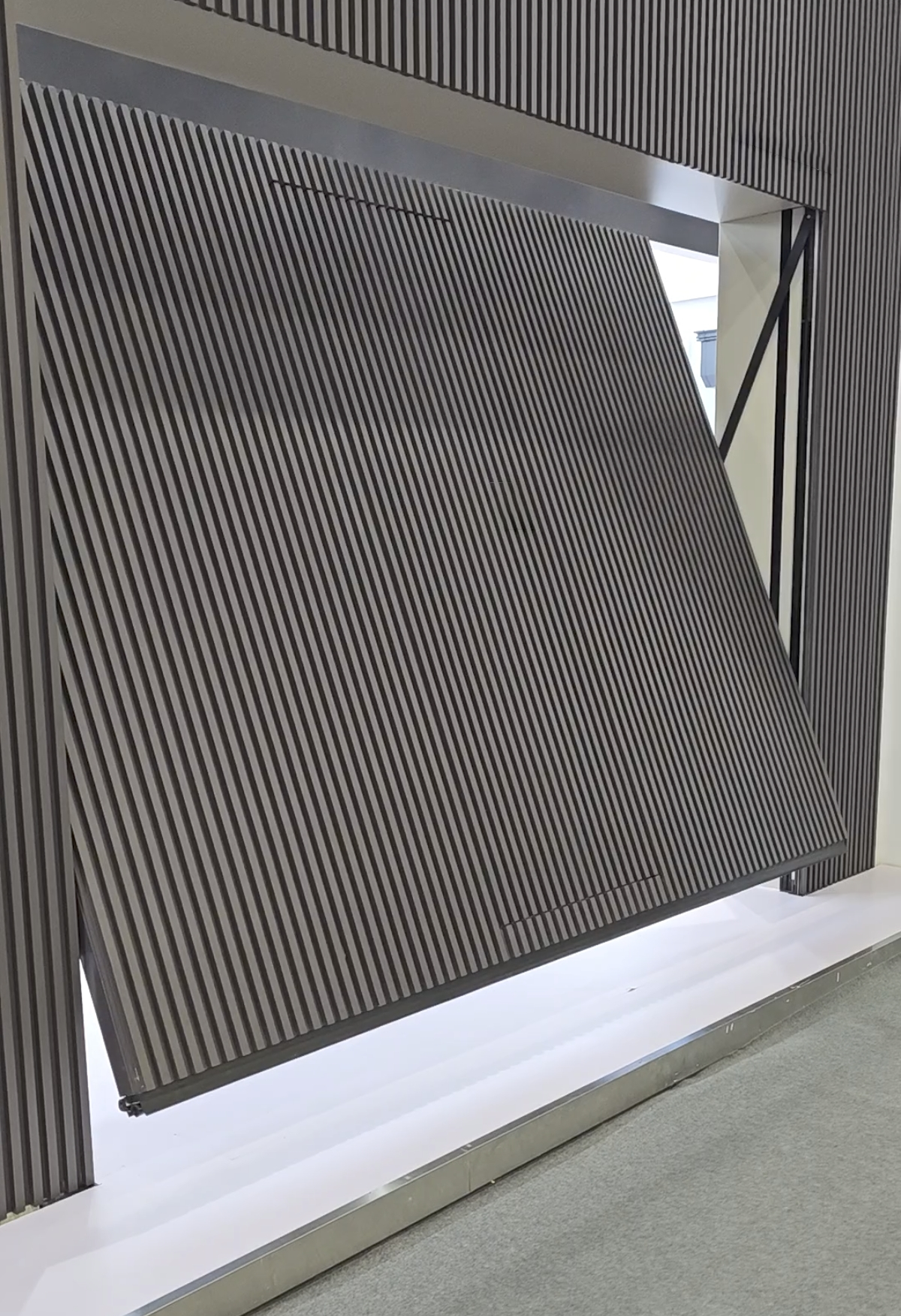

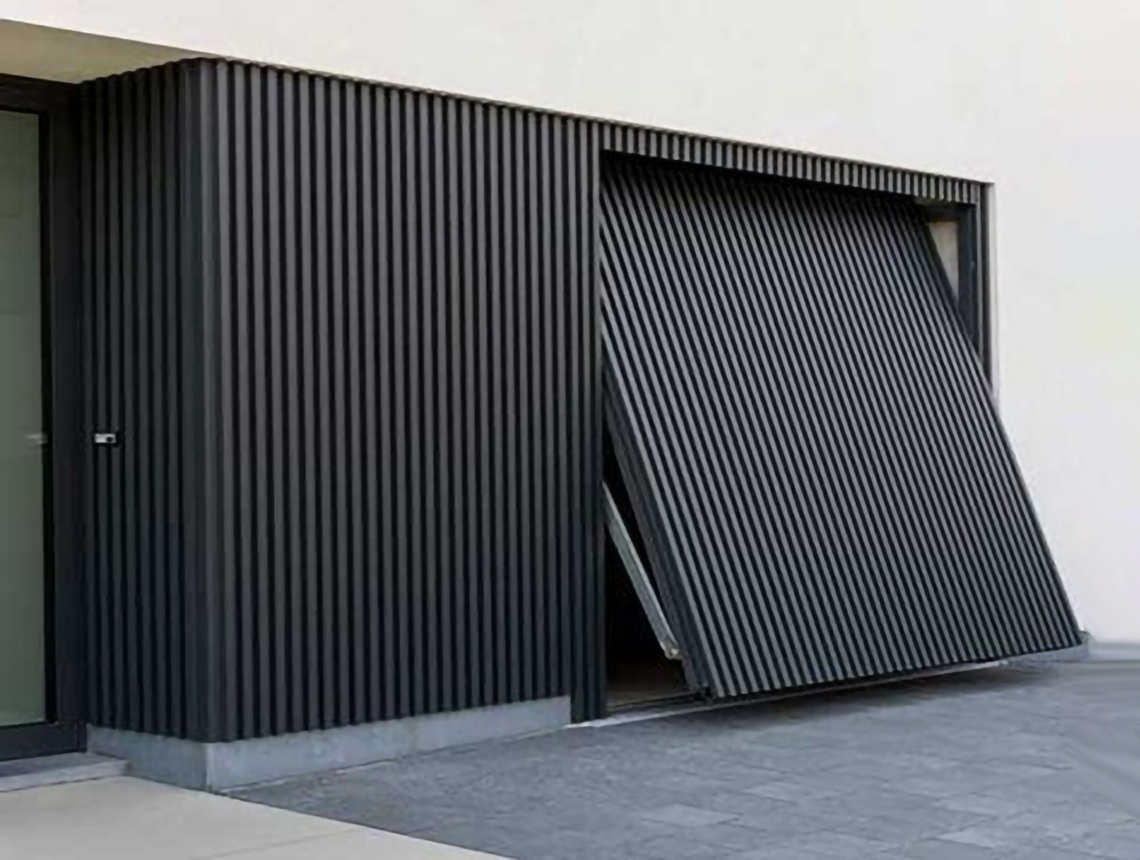

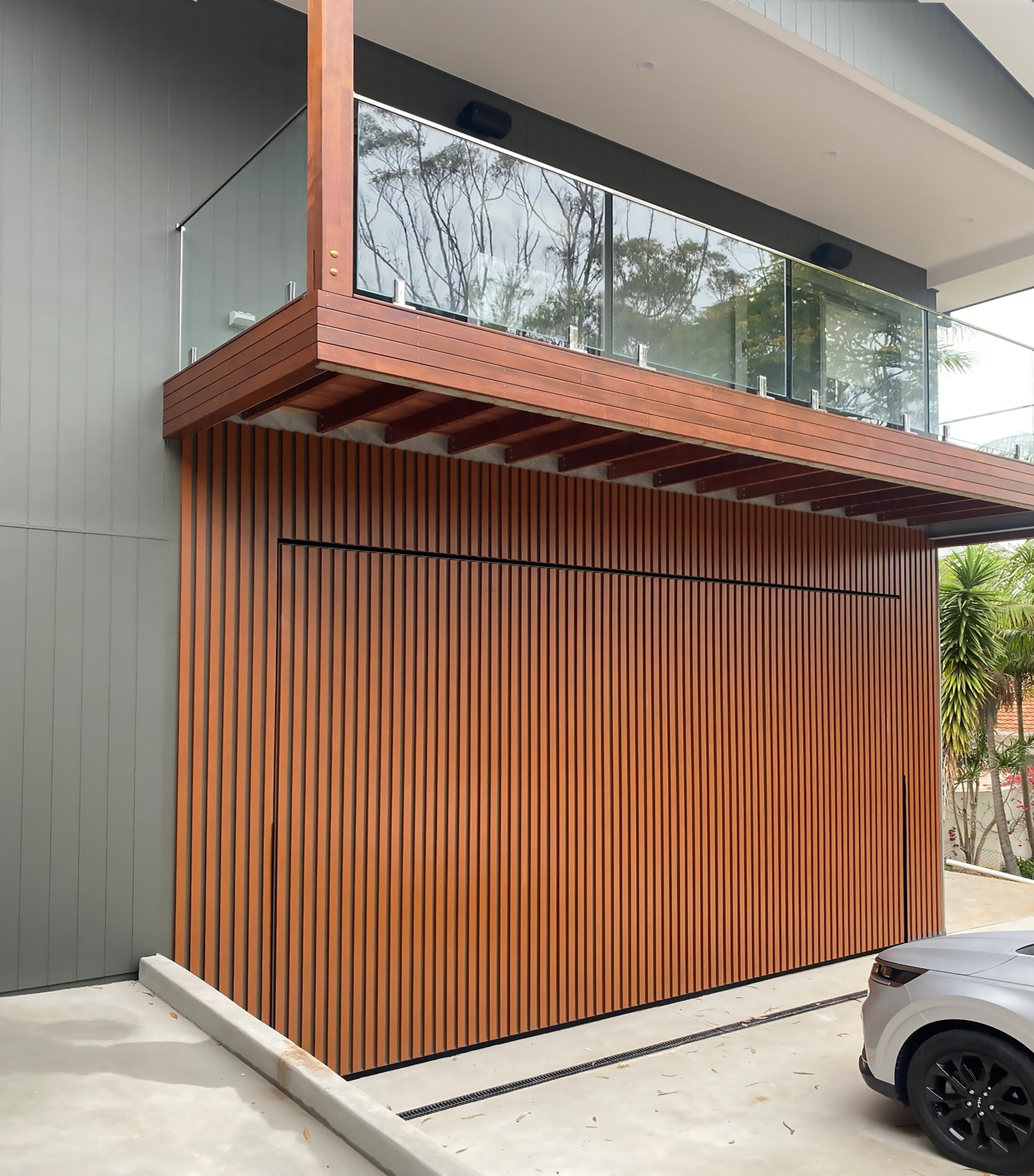

One-Piece Up & Over Garage Door
Built with an integral solid panel without any splits or hinges. It lifts and retracts as a whole, combining sleek appearance, reliable security and excellent practicality. An ideal choice for luxury villas and modern residences.
✅ Sleek & Premium Look
Integral solid aluminum panel with no sections, hinges or gaps. Frameless flat design available with PVDF coating, powder coating and wood grain finish. Perfect to match all kinds of high-end architectural styles.
✅ Sturdy Structure & Full Safety
Thickened solid aluminum panel with great wind resistance. The one-piece structure provides better anti-theft performance. All hardware is anti-rust for long service life. Equipped with anti-pinch & auto-reverse function and infrared sensors for maximum safety.
✅ Excellent Sealing, Insulation & Quiet Operation
Full surrounding rubber weather seals prevent dust, water and noise. Optional PU foam infill delivers superior thermal insulation. The door runs smoothly and quietly.
✅ Space-saving & Wide Application
Vertical lifting design requires no extra side space. Two installation types are available: Canopy and Retractable, suitable for yards and driveways of different sizes.
✅ Smart & User-friendly Operation
Comes with standard wireless remote control and manual release for power failure. Optional hidden pedestrian wicket door, APP access, fingerprint and card access for greater convenience.
Item | Specification |
Total Panel Thickness | ≥ 60mm |
Aluminum Wall Thickness | 3.0mm |
Main Material | Thickened solid aluminum panel |
Surface Treatment | PVDF Coating / Powder Coating / Wood Grain Transfer |
Max Custom Size | Width ≤ 9 m, Height ≤ 5 m |
Driving System | Industrial Servo Motor |
Balance System | Heavy-duty torsion spring system |
Safety Features | Auto-reverse, Infrared sensors |
| Optional Parts | PU foam infill, Hidden wicket door, Smart access control |
Industrial Servo Motor
Industrial servo motors are the high-precision power core of industrial automation. Featuring a closed-loop control system, they deliver accurate control of position, speed and torque with fast response, precise positioning and stable operation — the preferred drive solution for high-end industrial doors, intelligent equipment and automated lines.
Overview
An industrial servo system consists of servo motor + encoder + servo drive forming a closed loop. Unlike standard motors, it provides real‑time position and speed feedback, millisecond‑level response, and precise start/stop, positioning and speed regulation — ideal for industrial applications requiring high accuracy, stability and safety.
Key Advantages
✅ Ultra-high Positioning Accuracy
Equipped with high-resolution encoder, positioning accuracy up to ±0.01°, ensuring smooth door movement and precise stopping.
✅ Fast Response & Smooth Operation
Millisecond dynamic response, smooth start/stop, no jitter at low speed; high torque at low speed for stable operation under heavy load.
✅ Closed-loop Safety Protection
Real-time encoder feedback enables obstacle reversal, overload protection and power-off self-locking for safe and reliable operation.
✅ Energy Efficient & Durable
Permanent magnet synchronous design with high efficiency, low heat, low noise; fully sealed for dust and moisture resistance, suitable for factories and outdoor environments.
✅ Smart Compatibility & Easy Installation
Pulse / bus communication, seamless connection with PLC and host controller; compact size, perfect for industrial lifting doors, high-speed doors, up-and-over doors and more.
Technical Parameters (Typical)
Motor Type: Permanent Magnet AC Servo (mainstream)
Power Range: 0.75kW – 7.5kW
Rated Speed: 1500 / 3000 rpm
Encoder: 23-bit / 25-bit absolute (position memory on power loss)
Control Modes: Position / Speed / Torque (3-loop control)
Response Time: ≤ 3ms
Protection Class: IP54 / IP65
Applicable Doors: Industrial lifting doors, sectional doors, high-speed roller doors, luxury villa garage doors
Applications
Industrial workshops, logistics warehouses, premium garages, smart parks, automated production lines and equipment requiring high precision and reliability.
